Application: 1aslemon Acid,chicken essence,borax,ammonium sulfate,radish silk,seeds,salt,silkworm, etc
Industry: chemical,pharmaceutical,food,dehydrated vegetables,grain,mining,etc

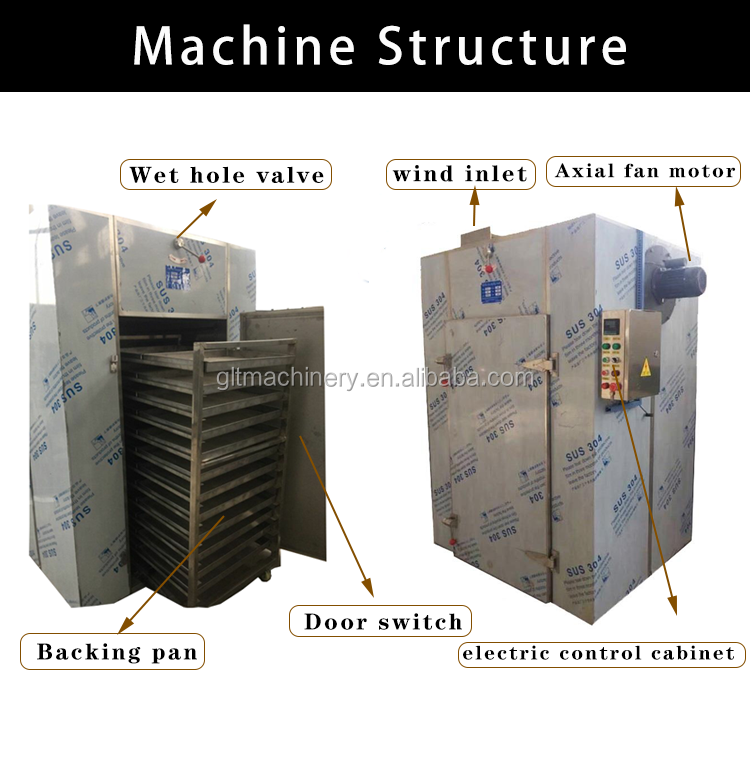

CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drving ovenincreases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can reach 50%. The successful design of CT-C hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad In order to save a large quantity of the energy in out country, in order to enhance the economic results of the enterprises.
model |
capacity (kg) |
power (kw) |
Steam to be consumed (m3/h) |
trays |
Dimension L*W*H (mm) |
baking cars |
GRT-C-24 | 50 | 0.45 | 3400 | 24 | 1400x1200x2000 | 1 |
GRT-C-48 | 100 | 0.9 | 3400 | 48 | 2300x1200x2000 | 2 |
GRT-C-96 | 200 | 0.9 | 6800 | 96 | 2300x2200x2000 | 4 |
GRT-C-144 | 300 | 1.35 | 10200 | 144 | 3200x2200x2000 | 6 |
GRT-C-196 | 400 | 1.8 | 113600 | 196 | 4300x2200x2000 | 8 |

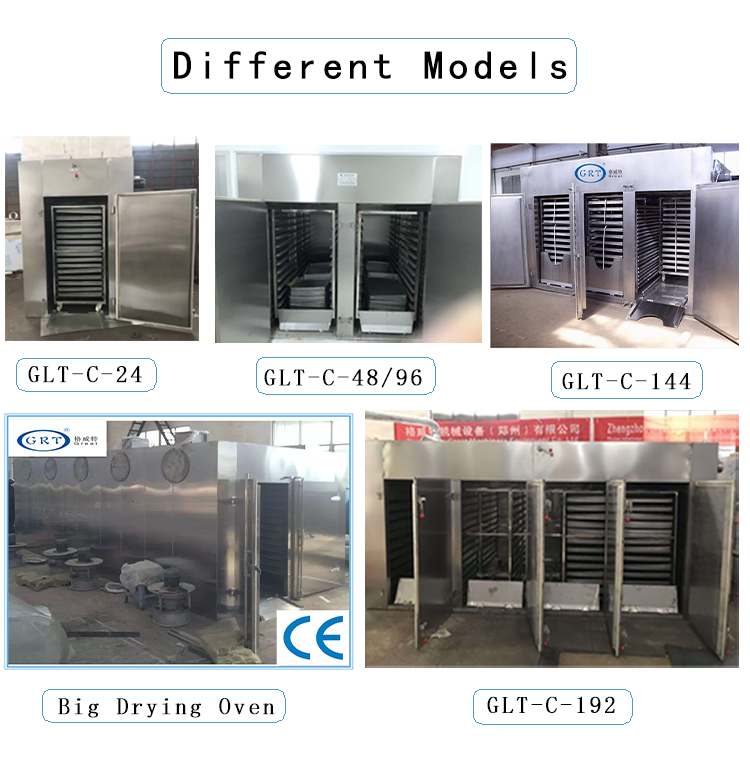

single-door bicycles (24 pallets), two-door two-cars (48 pallets),
two-door four-cars (96 pallets), three-door three-cars (72 pallets),
three-door six-cars (144 pallets), four-door eight-cars. (192 trays)
