Vibrating fluid bed dryer



Capacity:100-2000 kg/h

Application: aslemon Acid,chicken essence,borax,ammonium sulfate,radish silk,seeds,salt,silkworm, etc

Industry: chemical,pharmaceutical,food,dehydrated vegetables,grain,mining,etc

Get Price
INTRODUCTION

Vibrating Fluid Bed Dryer function by passing a process gas directly through a bed of solids via a perforated plate or another type of fluidizing media. Vibration is added to aid in fluidization of more difficult materials.

The vibrating fluidizer is suitable for drying, cooling, humidifying of powder and granule materials in chemistry, pharmaceutical, foodstuff, beverage and mining industries, also can be used for drying, cooling and humidifying simultaneously.

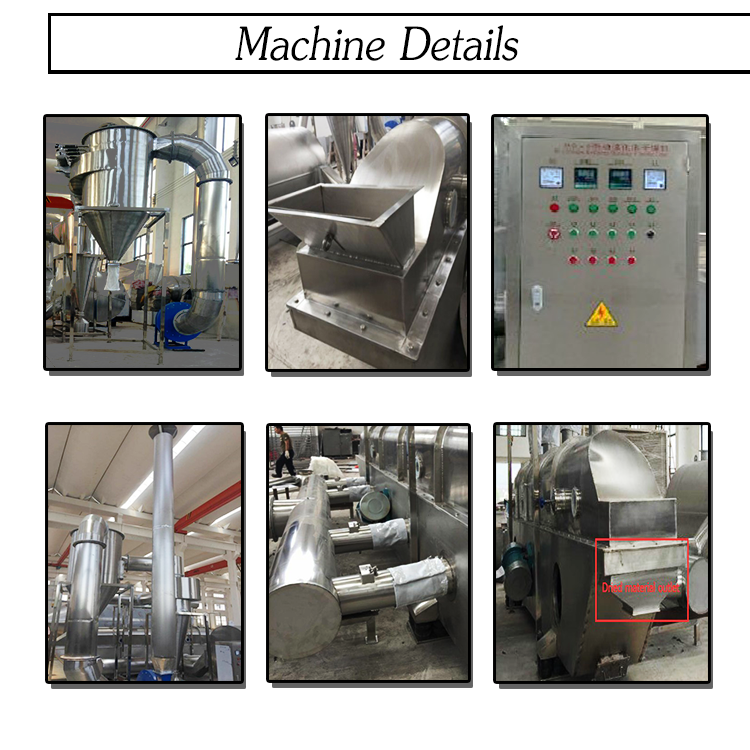

PICTURES
Parameters
Model Fluidized bed area Inlet air temperature Outlet air temperature Evaporation capacity Vibration motor model Vibration motor power
GRT-3*0.30 0.9m2 70-140℃ 40-70℃ 20-35kg ZDS31-6 0.8×2
GRT-4.5*0.30 1.35m2 70-140℃ 40-70℃ 35-50kg zDS31-6 0.8×2
GRT-4.5*0.45 2.025m2 70-140℃ 40-70℃ 50-70kg zDS32-6 1.1×2
GRT-4.5*0.60 2.7m2 70-140℃ 40-70℃ 70-90kg zDS32-6 1.1×2
GRT-6*0.45 2.7m2 70-140℃ 40-70℃ 80-100kg ZDS41-6 1.5×2
GRT-6*0.60 3.6m2 70-140℃ 40-70℃ 100-130kg ZDS41-6 1.5×2
GRT-6*0.75 4.5m2 70-140℃ 40-70℃ 120-140kg ZDS42-6 2.2×2
GRT-6*0.9 5.4m2 70-140℃ 40-70℃ 140-170kg zDS42-6 2.2×2
GRT-7.5*0.60 4.5m? 70-140℃ 40-70℃ 130-150kg zDS42-6 2.2×2
GRT-7.5*0.75 5.625m2 70-140℃ 40-70℃ 150-180kg ZDS51-6 3.0×2
GRT-7.5*0.9 6.75m2 70-140℃ 40-70℃ 160-210kg ZDS51-6 3.0×2
GRT-7.5*1.2 9m2 70-140℃ 40-70℃ 200-260kg ZDS51-6 3.0×2
This equipment is customized, more options please contact us.
Advantages
Fluid beds designed for your applications

GRT team of experts will work closely with our customers to find the fluid bed solution which meets the exact requirements of the application in question.

With the GRT fluid beds, we offer:

Easy access

Higher yield

Cost-effective design and installation

Optimisation of the product quality and reduction of the amount of “off-spec powder”




1. Robust drying chamber
The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.

2. Fast and uniform drying
Due to the specially designed drying bowl and agitator, wet material can be perfectly fluidized to make sure fast and uniform drying.

3. Flexibility in heat source
The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.

4. Flexibility in drying
The dryer works in batch type so that drying time can be easily controlled. It can be used to dry materials with different moisture content and moisture type.
